Key programming for 911 997, Boxster 987 and Cayman (2005-2010) - PAS module

The "Teach keys" function for the 911 997 (2005-2010), Boxster 987 (2005-2010) and Cayman (2005-2010): it lets you learn one to six keys to the vehicle by working on the PAS module. You need to have the PAS codes and the transponder data to hand.

Procedure

1. Gather the required data first: the 3-byte teach enable code of the PAS module, the 6-digit (3-byte) transponder password and the 12-digit (6-byte) transponder secret key.
2. Check the keys to be learned have already been prepared as dealer keys (see "Program dealer key" for the 911 997, Boxster/Cayman 987).
3. Connect the AVDI to the vehicle's OBDII socket and start "Abrites Diagnostics for Porsche".
4. Open the "Special Functions", select "Key learning" and press "Open".
5. Select the model "911 997", "Boxster 987" or "Cayman" and the "Teach keys" function, then press "Next".

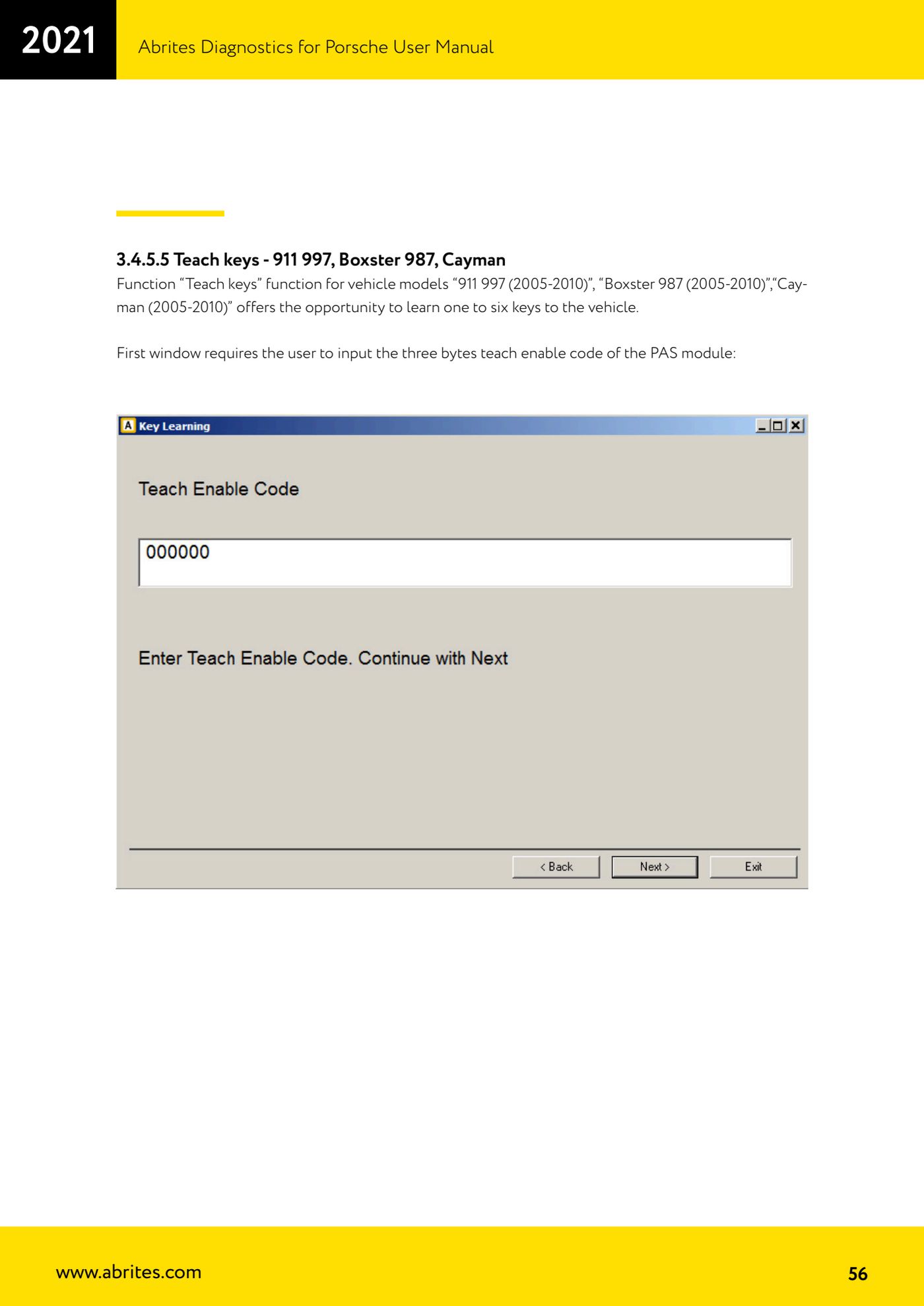

6. In the first window enter the 3-byte teach enable code of the PAS module and press "Next".

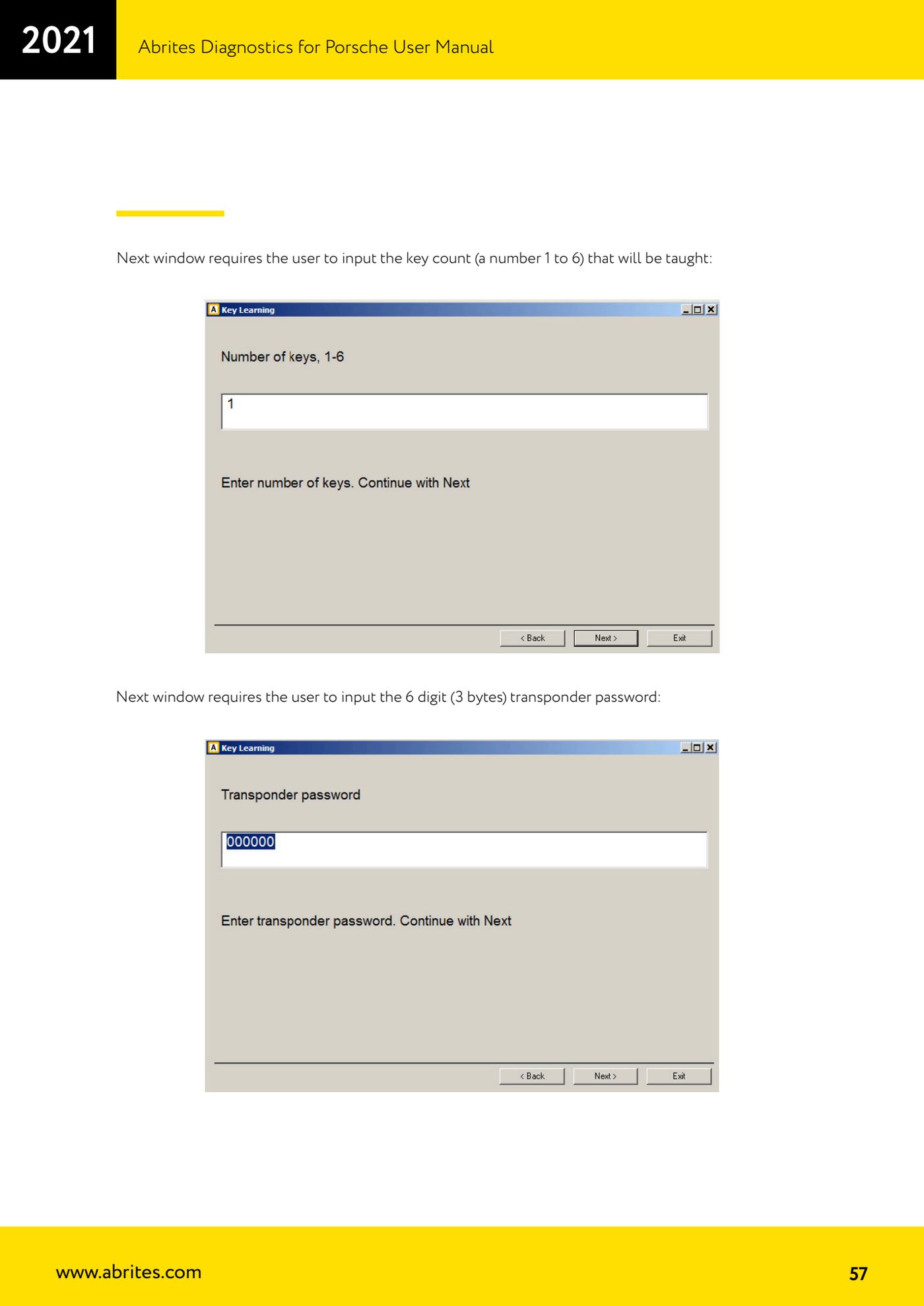

7. In the next window enter the 6-digit (3-byte) transponder password and press "Next".
8. Enter the number of keys to be learned (1 to 6) and press "Next".

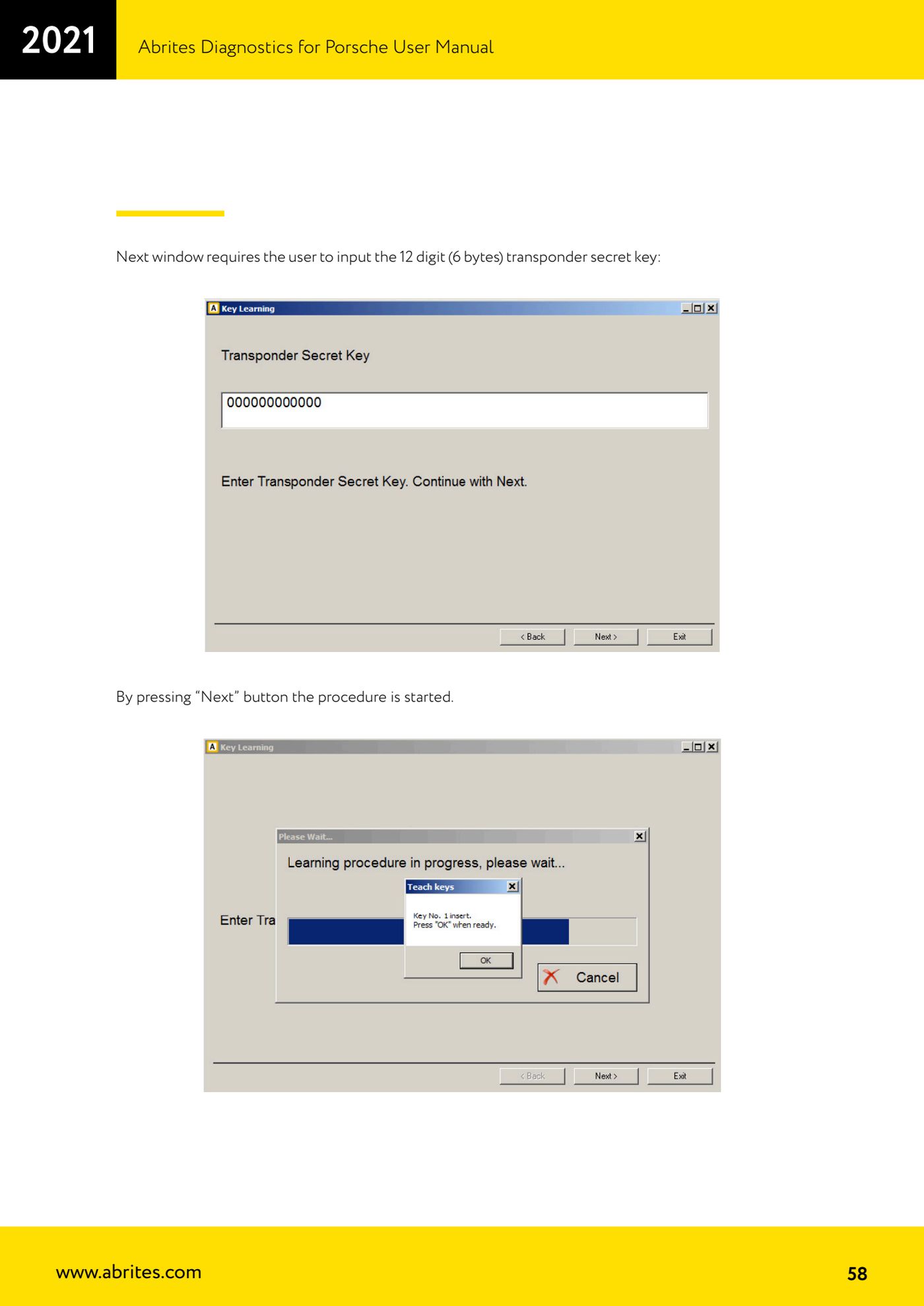

9. In the last window enter the 12-digit (6-byte) transponder secret key and press "Next": the procedure starts.
10. Follow the on-screen prompts, putting each key into the ignition lock, then check the car starts with all the learned keys.

Reference screenshots
