Adapting a new PAS/Kessy module (Teach control unit) - Boxster 987, 911 997, Cayman up to 2010

Lets you teach a new PAS module (immobiliser/Kessy) to the car on Boxster 987, 911 997 and Cayman up to 2010. Used when the Kessy module is replaced and has to be matched to the vehicle together with the keys.

Procedure

1. Connect the AVDI to the car's OBDII socket and start "Abrites Diagnostics for Porsche".
2. Select the vehicle model "Boxster 987, 911 997, Cayman (-2010)" and open the special function "Teach control unit".
3. In the first window enter the teach enable code of the new Kessy module and press "Next".
4. In the next window enter the car's VIN (Vehicle Identification Number) and press "Next".
5. Enter the ELV secret key of the new Kessy module: 5 bytes. Press "Next".
6. Enter the transponder password of the new Kessy module and press "Next".
7. Enter the immobiliser code (immobilizer code) of the new Kessy module and press "Next".
8. Enter the transponder secret key of the new Kessy module and press "Next".
9. On the final "Next" the new Kessy module is adapted to the car and all the required keys are learned.
10. When the procedure is done, check that the car starts and that the keys work.

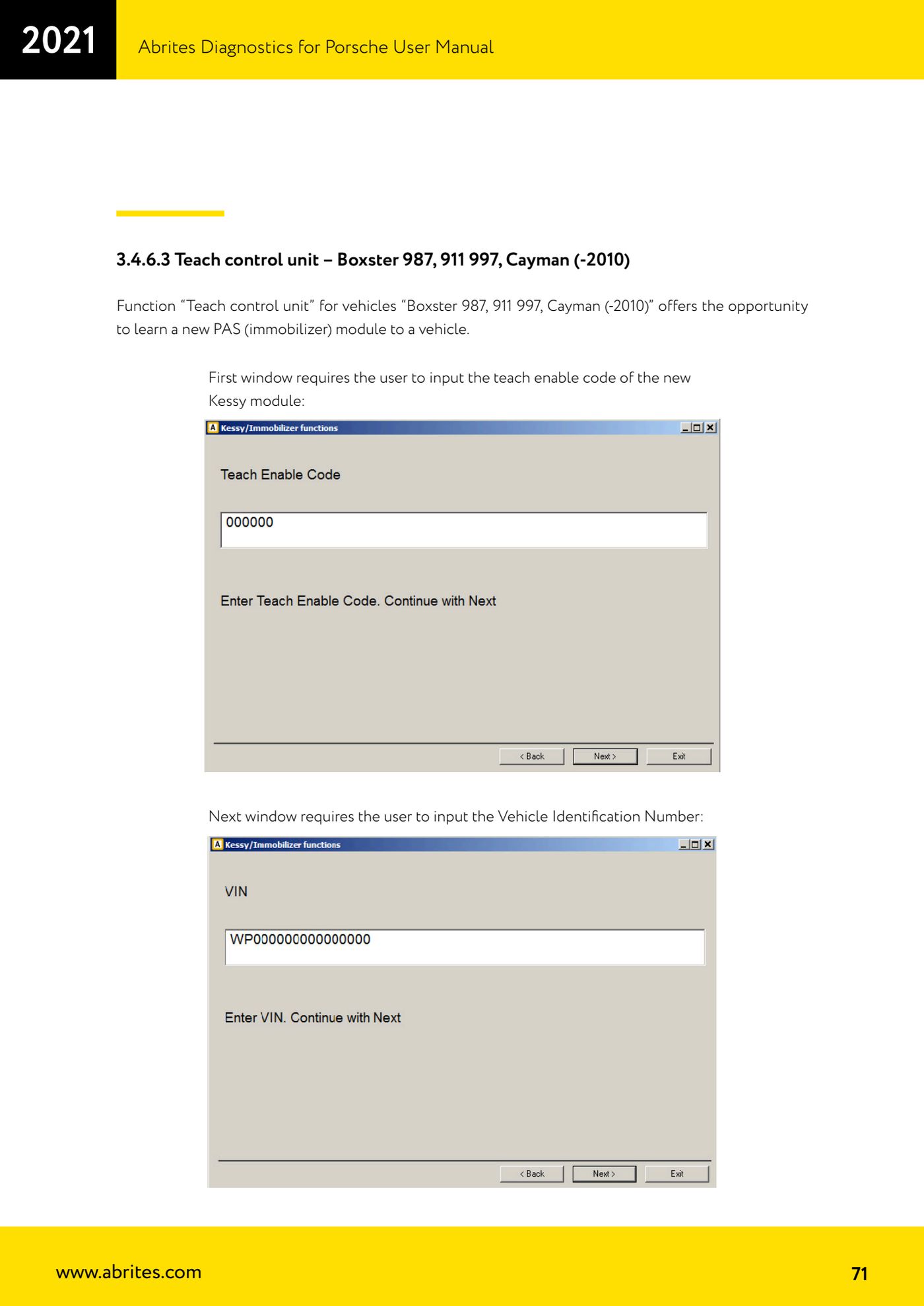

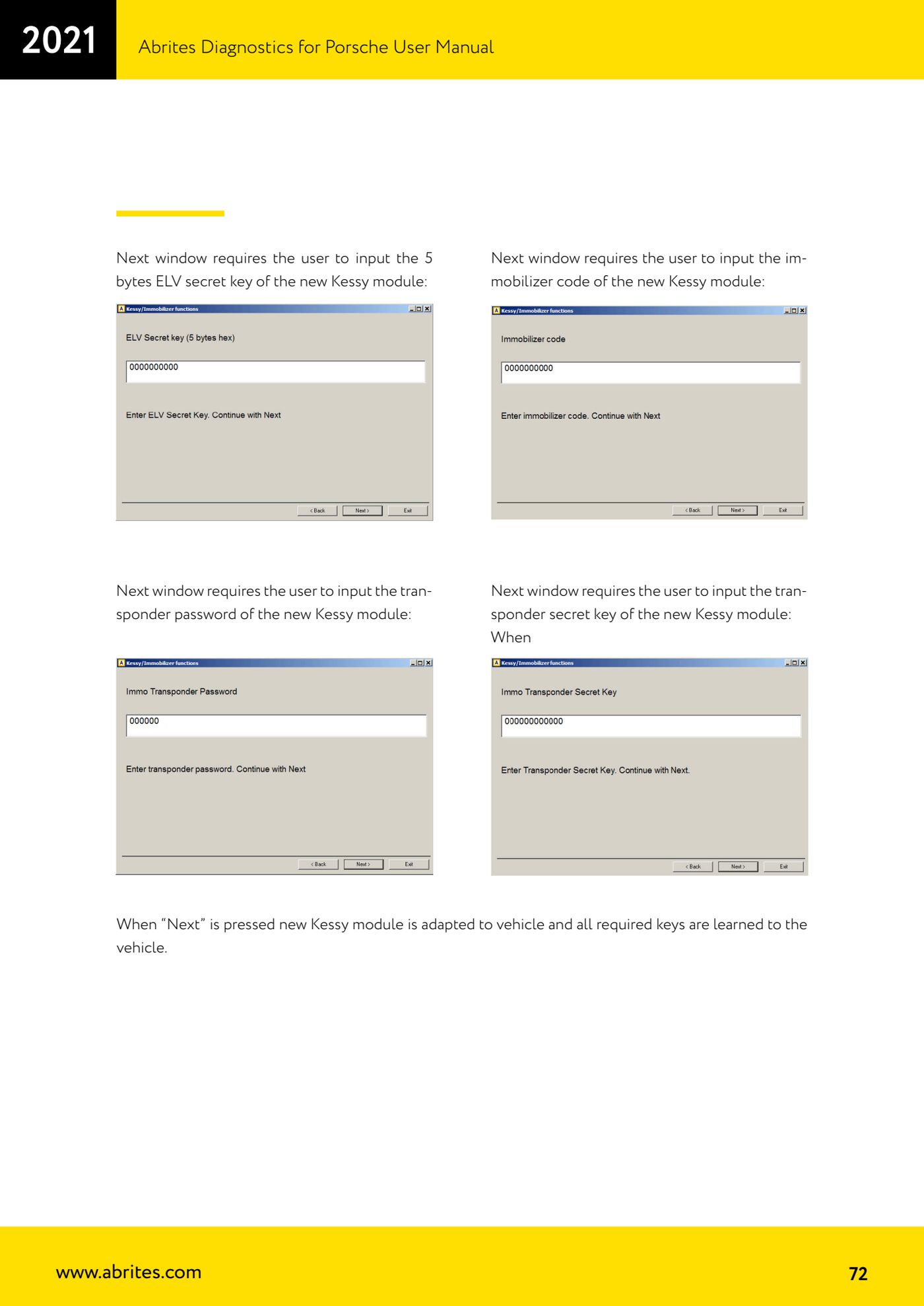

Reference screenshots
