A8 (4H) / A7 (4G) / A6 (4G) / Touareg (7P) UDS with 95320: mileage recalibration

VAG Interface Classic Odometer Medium ⏱ 15-30 min 6 steps

A dedicated function for the instrument clusters of Audi A8 (4H), A7 (4G), A6 (4G) and VW Touareg (7P) with 95320 EEPROM and UDS protocol. It is used to read and recalibrate the mileage; there is also a separate option to fix the DEF error.

Required licences

  • —

Hardware / cables

  • AVDI
⚠ WarningIf the cluster is not powered properly (ignition/IGN not on) the software shows the warning window and the procedure will not start: switch the ignition on before proceeding.

Procedure

  1. Connect the AVDI and turn the key to ON (IGN ON).
  2. Go into the "CAN Instrument" menu.
  3. Read the current mileage.
  4. Enter the value you want and click "Recalibrate mileage".
  5. Wait for the procedure to finish: the message "Done" appears at the bottom of the window.
  6. If needed, use the separate option to fix the DEF error.

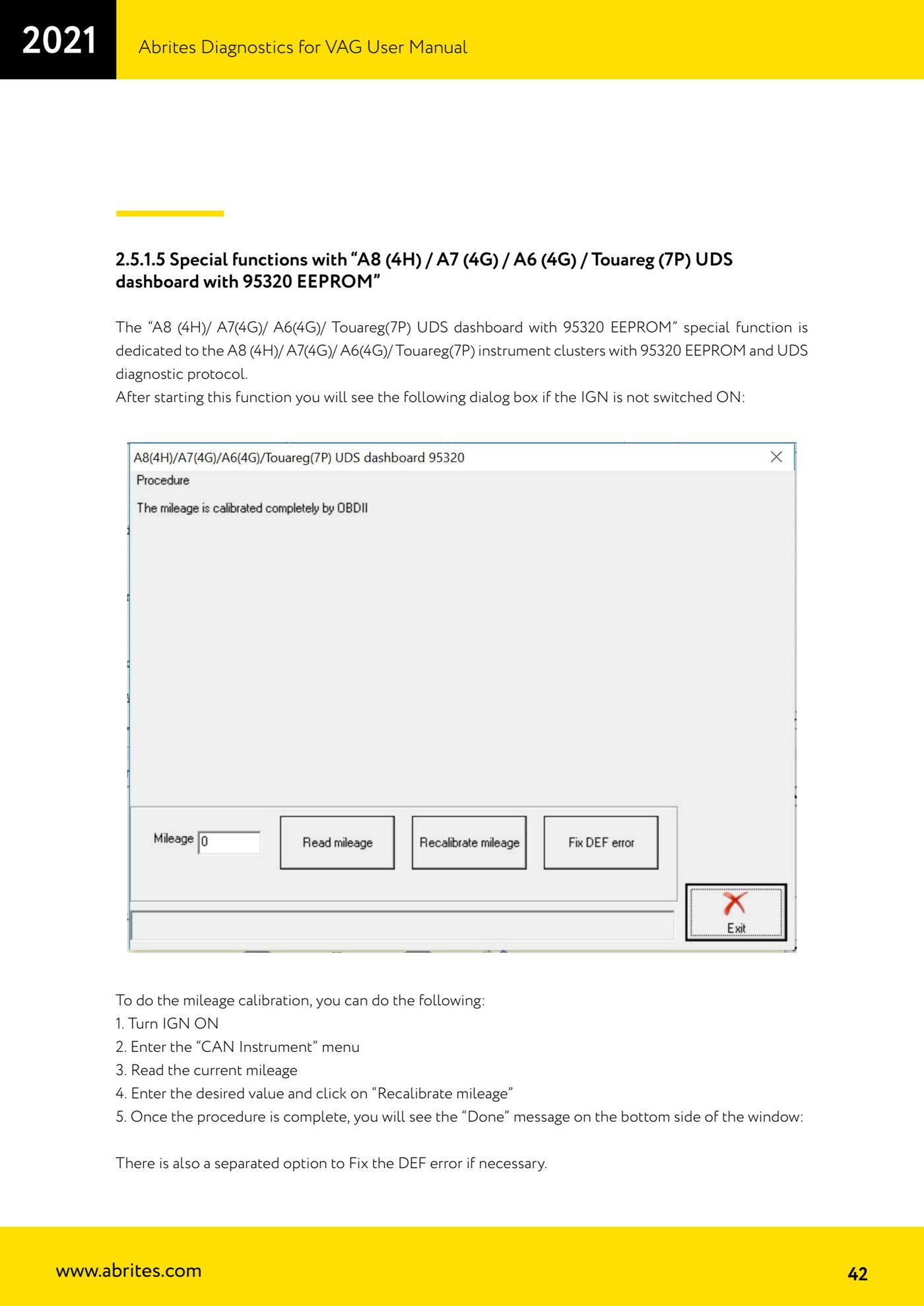

Reference screenshots

A8 (4H) / A7 (4G) / A6 (4G) / Touareg (7P) UDS with 95320: mileage recalibration — 1
Source: Manuale VAG (Offline), cap. 2.5.1.5 (p.42) · ⏱ estimated time 15-30 min
