Central Gateway (CGW): Configuration read and write
Mercedes
Interface Classic
Coding / Adaptations
Advanced
⏱ varies
4 steps
The CGW is the main gateway between CAN C and CAN B and holds the service programmes. This special function allows the Central Gateway Configuration to be read and written IN FULL.
Required licences
- —
Hardware / cables
- —
⚠ WarningThe function writes the whole CGW Configuration: always save the original read before writing, because the gateway configuration governs the communication between CAN C and CAN B as well as the service programmes.
Procedure
- Connect the vehicle and open the "Central Gateway Configuration read/update" special function.
- Perform a full read of the CGW control unit Configuration and keep it.
- Apply the required changes to the Configuration.
- Write the complete Configuration back to the CGW control unit.

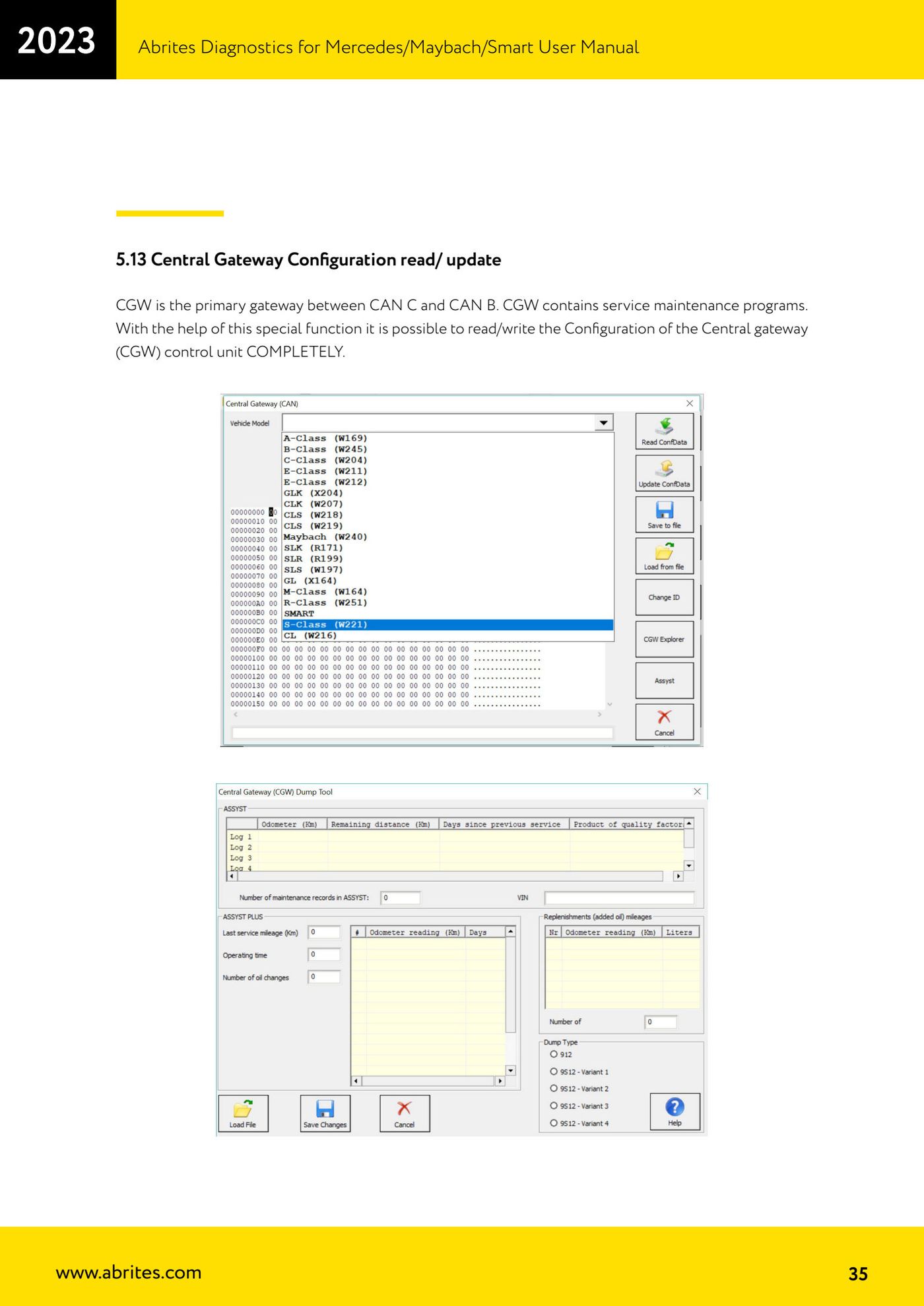

Reference screenshots
Source: Manuale Mercedes (Offline), cap. 5.13 (p.35) · ⏱ estimated time varies
